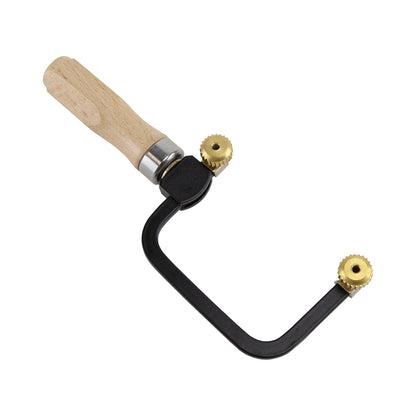

• Miniature Saw with Handle. Made from steel with a removable wood handle.

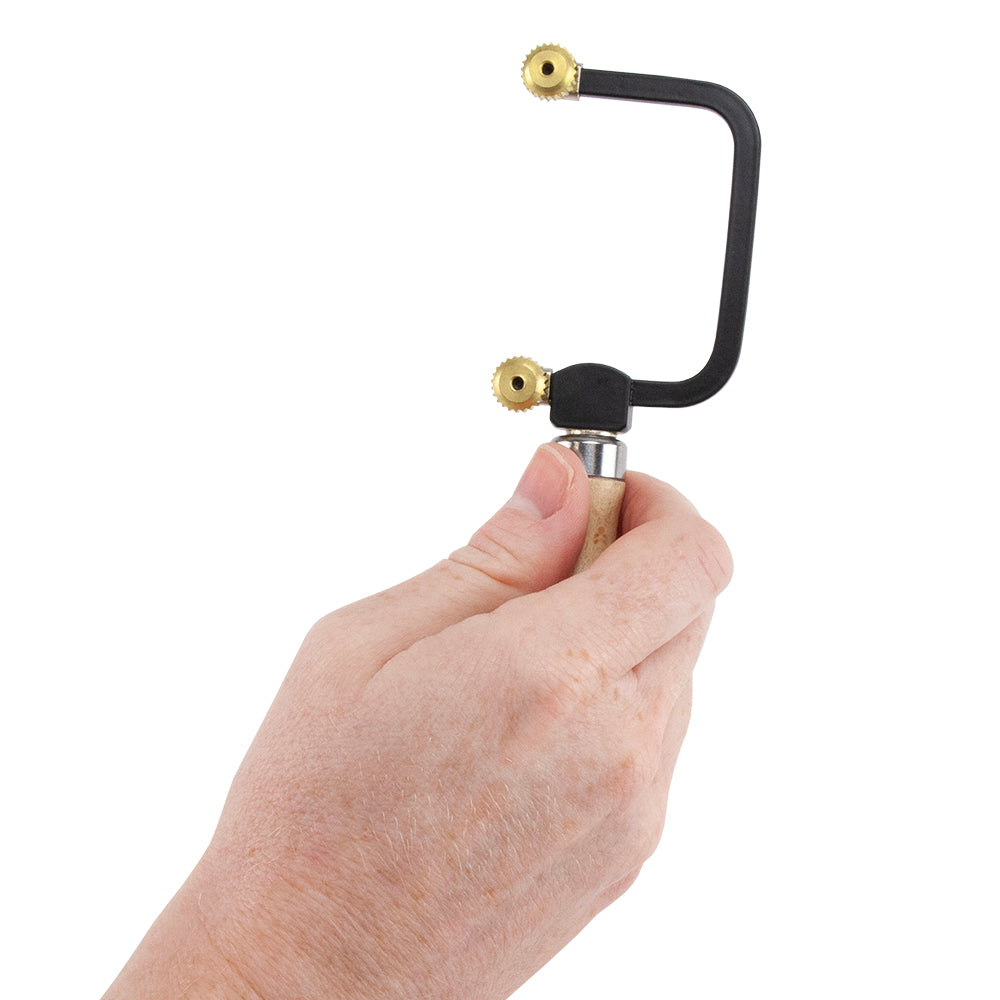

  • hand holding Miniature Saw with Handle. Made from steel with a removable wood handle.
1 2

Miniature Saw with Handle

Miniature Saw with Handle

SAW-015

Throat depth is 1 1⁄2" with an overall length of 4 3⁄4"

$13.65 USD
$13.65 USD
Sale Sold out
Add to Wishlist
See it in the Learning Center!

Miniature Saw with Handle


A miniature, all-metal construction saw designed for delicate work. Perfect for cutting metal clay in the greenware stage. Cut out elaborate designs or saw dried metal clay tubes and lentils.

Sawblades are not available 2-1/2" long, so you have to break off that length from a regular jeweler's sawblade, repurpose your broken ones! It also works extremely well with our Slurry Coated Polishing Strips. Made from steel with a removable wood handle.



Choose the blade that best suits the thickness of the material being sawn. The ideal ratio is 3 teeth on the materials at any time. Use a B&S gauge to determine the thickness if unknown.

Blade Size Use With Teeth Per Inch Blade Thickness Equivalent Drill Size
8/0 24 to 26 gauge 81 .0060" 80
6/0 24 gauge 76 .0070" 79
5/0 22 to 24 gauge 71 .0080" 78
4/0 22 gauge 66 .0086" 77
3/0 22 gauge 61 .0095" 76
2/0 20 to 22 gauge 56 .0103" 75
1/0 18 to 22 gauge 53.5 .0110" 73
1 18 to 20 gauge 51 .0120" 71
2 16 to 18 gauge 43 .0134" 70
3 12 to 14 gauge 40.5 .0140" 68
4 10 gauge 38 .0150" 67
5 8 gauge 35.5 .0158" 65
6 6 to 8 gauge 33 .0173"

58
